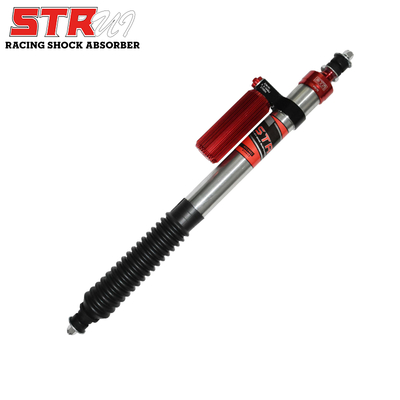

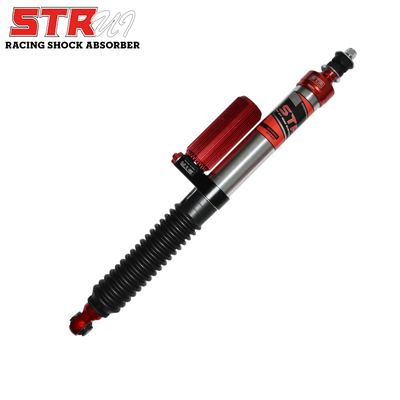

Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Basic Properties
Place of Origin:
China
Brand Name:
STR
Certification:
ISO90001,2015
Model Number:
ST8056/ST8057
Trading Properties
Minimum Order Quantity:
5 sets
Price:
USD150-200/PC
Payment Terms:
T/T
Supply Ability:
10000PCS/month
Product Summary
Land Cruiser 80 4x4 Shock Absorber - Offroad Suspension Vehicle Shock Product Specifications Attribute Value Damping Mono Tube Compatibility Only for LC80 Travel 2/3/4 inches Technology Piggyback Reservoir Mounting Type Eyelet Weight 6.5KGS/PC Product Type Offroad Vehicle Shock Material Steel/Aluminum Color Red (or Customized) Spring Rate Customizable Size 190mm x 51mm Adjustment Rebound, Low-speed Compression, High-speed Compression Spring Type Air Premium Features 100% bolt
Product Details
Highlight:
Land Cruiser 80 Piggyback Shock
,Adjustable Damping Piggyback Shock
,Adjustable Piggyback Shock Absorber
Damping:
Mono Tube
Compatibility:
Only For LC80
Travel:
2/3/4 Inches
Technology:
Piggyback Reservoir
Mounting Type:
Eyelet
Weight:
6.5KGS/PC
Product Type:
Offroad Vehicle Shock
Material:
Steel/Aluminum
Color:
Red (or Customized)
Spring Rate:
Customizable
Size:
190mm X 51mm
Adjustment:
Rebound, Low-speed Compression, High-speed Compression
Spring Type:
Air
Type:
STR Shocks
Application:
Off Road
Feature:
Adjustable Shock Absorbers
Application:
Off Road Shocks
Other Name:
Vehicle Shock Absorber
Product Type:
Shock Absorbers
Product Description
Land Cruiser 80 4x4 Shock Absorber - Offroad Suspension Vehicle Shock
Product Specifications
| Attribute | Value |
|---|---|
| Damping | Mono Tube |
| Compatibility | Only for LC80 |
| Travel | 2/3/4 inches |
| Technology | Piggyback Reservoir |
| Mounting Type | Eyelet |
| Weight | 6.5KGS/PC |
| Product Type | Offroad Vehicle Shock |
| Material | Steel/Aluminum |
| Color | Red (or Customized) |
| Spring Rate | Customizable |
| Size | 190mm x 51mm |
| Adjustment | Rebound, Low-speed Compression, High-speed Compression |
| Spring Type | Air |
Premium Features
- 100% bolt-on performance for easy installation
- Increased wheel travel for superior offroad capability
- Large 2.5" shock bodies increase fluid capacity for smoother operation
- Factory tuned for optimal ride quality on all terrains
- Extensive lab and real-world testing for perfect damping curves
- Built with premium materials to precise tolerances
- Fully rebuildable, serviceable and tunable for long-term performance
- External reservoirs for enhanced heat dissipation and sustained performance
- Optional Wide Range Compression Adjuster with 24 precise settings
Technical Parameters
| Dampening Adjustment 1 | 24 steps compression |
| Dampening Adjustment 2 | 30 steps rebound |
| Top Strut | CNC 6061-T6 Aluminum |
| Oil Hose Material | 14mm Teflon |
| Oil Hose Length | 600mm |
| Spring Style | Coil spring |
| Oil Hose Joint | Swivel Banjo Fitting |
| Gas Reservoir Length | 200MM |
| Shock Body | Steel or Aluminum alloy |
| Shock Body OD | 66mm |
| Piston Rod OD | 22mm |
| Bushes | Silent block steel rubber bushes |
| MOQ | 5 sets |
| Color Options | Red/Golden/Black/Green/Blue |
| Valve Core | Included |
Installation Images
